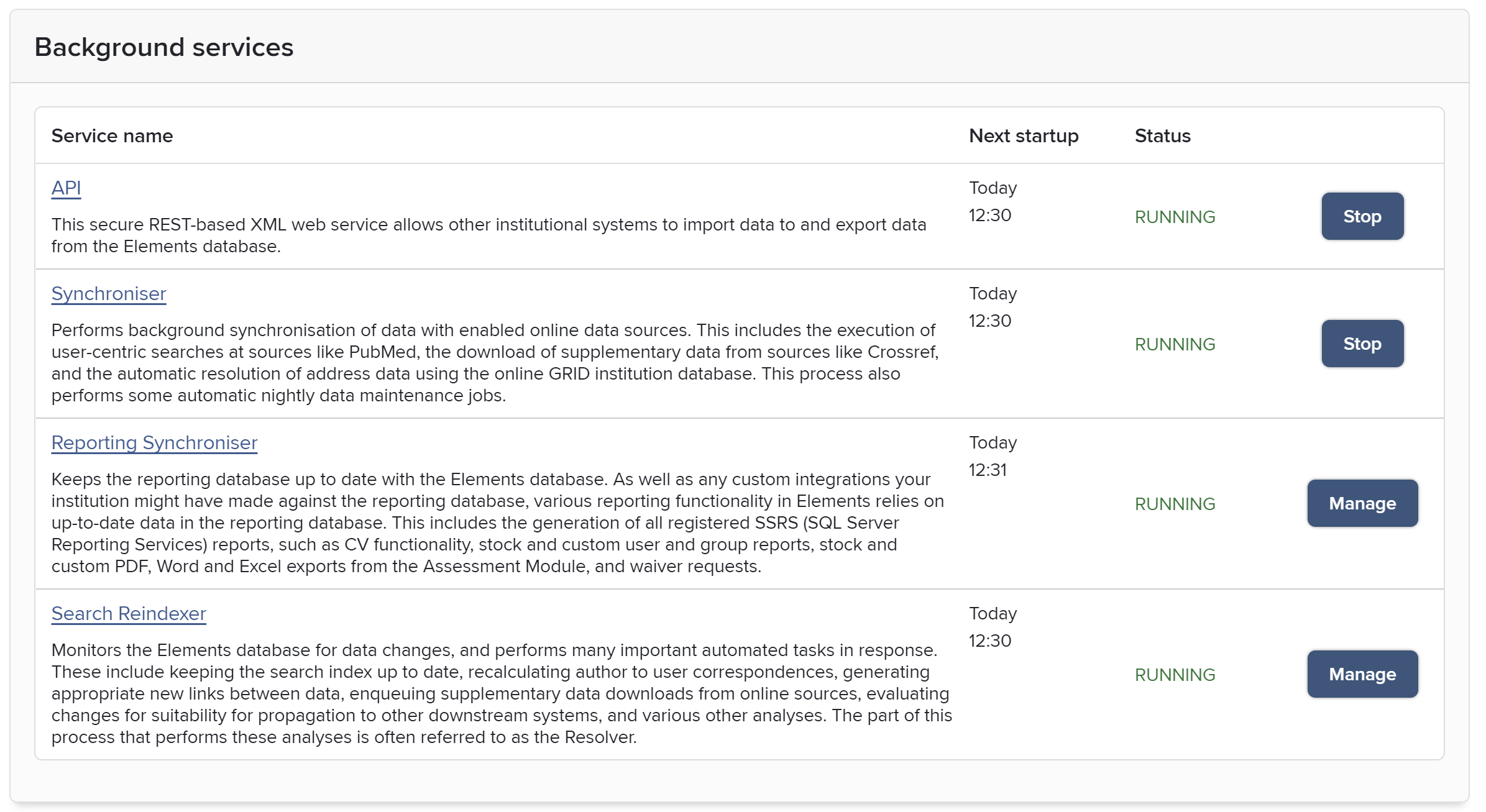

The Reporting Synchroniser background service, when running, continuously keeps the Reporting Database in sync with data changes made in the Elements operational database. It can be seen on the Scheduled Jobs page of Elements:

The set of tables and columns defined in the Reporting Database is dependent on the setup of a particular instance of Elements. Even when the structure of the Reporting Database becomes out of sync with the Elements database (for example, when type/field definitions are altered by your Elements system administrator), the reporting database synchroniser will do its best to bring as many changes over as possible until the Reporting Database is next rebuilt (which should be done after making changes to type/field definitions in Elements).

At any given time, the Reporting Synchroniser will be performing one of three kinds of data synchronisation:

• Full: A full synchronisations can be run manually, and is also typically scheduled to run every two weeks at the weekend. It begins by deleting all rows from all tables in the Reporting Database. It then proceeds to refill them all with data in the Elements operational database. This can take several hours to complete depending on the amount of data in your Elements instance, and while it is running, anything consuming data from the Reporting Database may show incomplete data.

• Differential: Changes made to all but the most static tables are brought across from the Elements operational database to the Reporting Database. This kind of synchronisation runs once per hour and can take up to around half a minute to complete.

• Real-time: Changes made to most of the tables in the Reporting Database, including those for publications, users, and the links between them, are synchronised very frequently. Typically, data is kept up to date to within a few seconds, depending on system load.

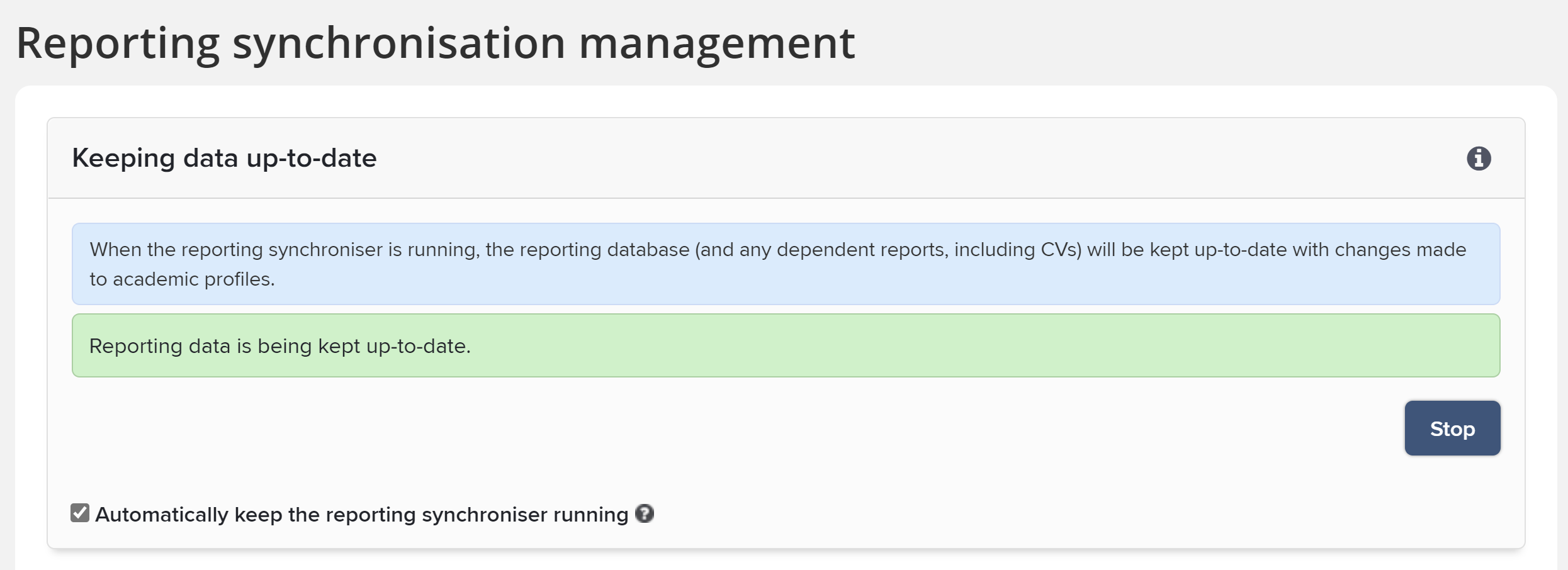

During normal operation, the Reporting Synchroniser should be running continuously. It can be manually started and stopped from the Elements website on the Reporting Synchroniser management page, located in the menu under System Admin.

Real-time data synchronisation runs continuously. To manage load on the system, it focuses on synchronising changes to a key set of important tables whose data changes regularly:

• All main object and record tables and all of their child tables:

  • Assessment Supporting Information

  • Deposit Advice

  • Equipment

  • Funding Body

  • Grant

  • Impact

  • Journal

  • Organisational Structure

  • Professional Activity

  • Project

  • Publication

  • Teaching Activity

  • User

    • Exception: the [User Identifier] table is not synced in real time

• All user preference tables:

  • User Assessment Supporting Information Preferences

  • User Deposit Advice Preferences

  • User Equipment Preferences

  • User Funding Body Preferences

  • User Grant Preferences

  • User Impact Preferences

  • User Journal Preferences

  • User Organisational Structure Preferences

  • User Professional Activity Preferences

  • User Project Preferences

  • User Publication Preferences

  • User Teaching Activity Preferences

• Relationship tables and views for each pair of categories:

  • Link

  • Deposit Advice Journal Relationship

  • Equipment Equipment Relationship

  • Equipment Grant Relationship

  • Equipment Impact Relationship

  • Equipment Organisational Structure Relationship

  • Equipment Professional Activity Relationship

  • Equipment Project Relationship

  • Equipment Publication Relationship

  • Equipment Teaching Activity Relationship

  • Equipment User Relationship

  • Funding Body Grant Relationship

  • Funding Body Publication Relationship

  • Grant Grant Relationship

  • Grant Impact Relationship

  • Grant Organisational Structure Relationship

  • Grant Professional Activity Relationship

  • Grant Project Relationship

  • Grant Publication Relationship

  • Grant Teaching Activity Relationship

  • Grant User Relationship

  • Impact Impact Relationship

  • Impact Organisational Structure Relationship

  • Impact Professional Activity Relationship

  • Impact Project Relationship

  • Impact Publication Relationship

  • Impact Teaching Activity Relationship

  • Impact User Relationship

  • Organisational Structure Organisational Structure Relationship

  • Organisational Structure Professional Activity Relationship

  • Organisational Structure Project Relationship

  • Organisational Structure Publication Relationship

  • Organisational Structure Teaching Activity Relationship

  • Organisational Structure User Relationship

  • Professional Activity Professional Activity Relationship

  • Professional Activity Project Relationship

  • Professional Activity Publication Relationship

  • Professional Activity Teaching Activity Relationship

  • Professional Activity User Relationship

  • Project Project Relationship

  • Project Publication Relationship

  • Project Teaching Activity Relationship

  • Project User Relationship

  • Publication Publication Relationship

  • Publication Teaching Activity Relationship

  • Publication User Relationship

  • Teaching Activity Teaching Activity Relationship

  • Teaching Activity User Relationship

  • User User Relationship

• OA scheme and child tables:

  • OA Scheme Assigned Deposit Config Group

  • OA Scheme Compliance Rule

  • OA Scheme Compliance Rule File Version

  • OA Scheme Compliance Rule Open Access Status

  • OA Scheme Compliance Rule Reuse Licence

  • OA Scheme Exception Type

  • OA Scheme Funder Name

  • OA Scheme Publication Type Setting

  • OA Scheme Publication Type Setting Compliant Repository

  • OA Scheme Publication Type Setting Excluded Sub Type.

• Publication OA Exception

• Publication OA Scheme State, and child table:

  • Publication OA Scheme State Compliance Issue

• Waiver Request

• Assessment Exercise

• Assessment Item

• Assessment REF1 Researcher

• Assessment REF2 Output

Differential data synchronisation runs hourly. It monitors tables containing data that may change relatively frequently, but which generally do not need to be as up to date in the Reporting Database as those above. Hourly updates are made to the following tables:

• Category tables

• Source tables

• Object type tables

• Field tables

• Groups tables

• Group role tables

• Label scheme and vocabulary tables

• Log tables

• Match suggestions tables

• Object history tables

• Repository item tables (RT1)

• Delegate tables

• Search term tables

• Research assessment tables

• HERDC tables

• The [User Identifier] table

Reports which consume data from these tables may not reflect fully up to data information and may need to wait up to an hour after data changes are made.

Full data synchronisation typically runs once every two weeks at the weekend, or whenever you choose to manually run it. It deletes all of the data in all of the tables in the Reporting Database and then refills them. It is the only form of synchronisation that can keep (for example) the following infrequently- or never-changing tables up to date with the Elements database:

• Date tables

• Currency tables

• Geography tables

• OA Exception Type

• OA State Compliance Issue

• OA State Compliance Status

• OA State Scope Issue

  OA State Scope Status.

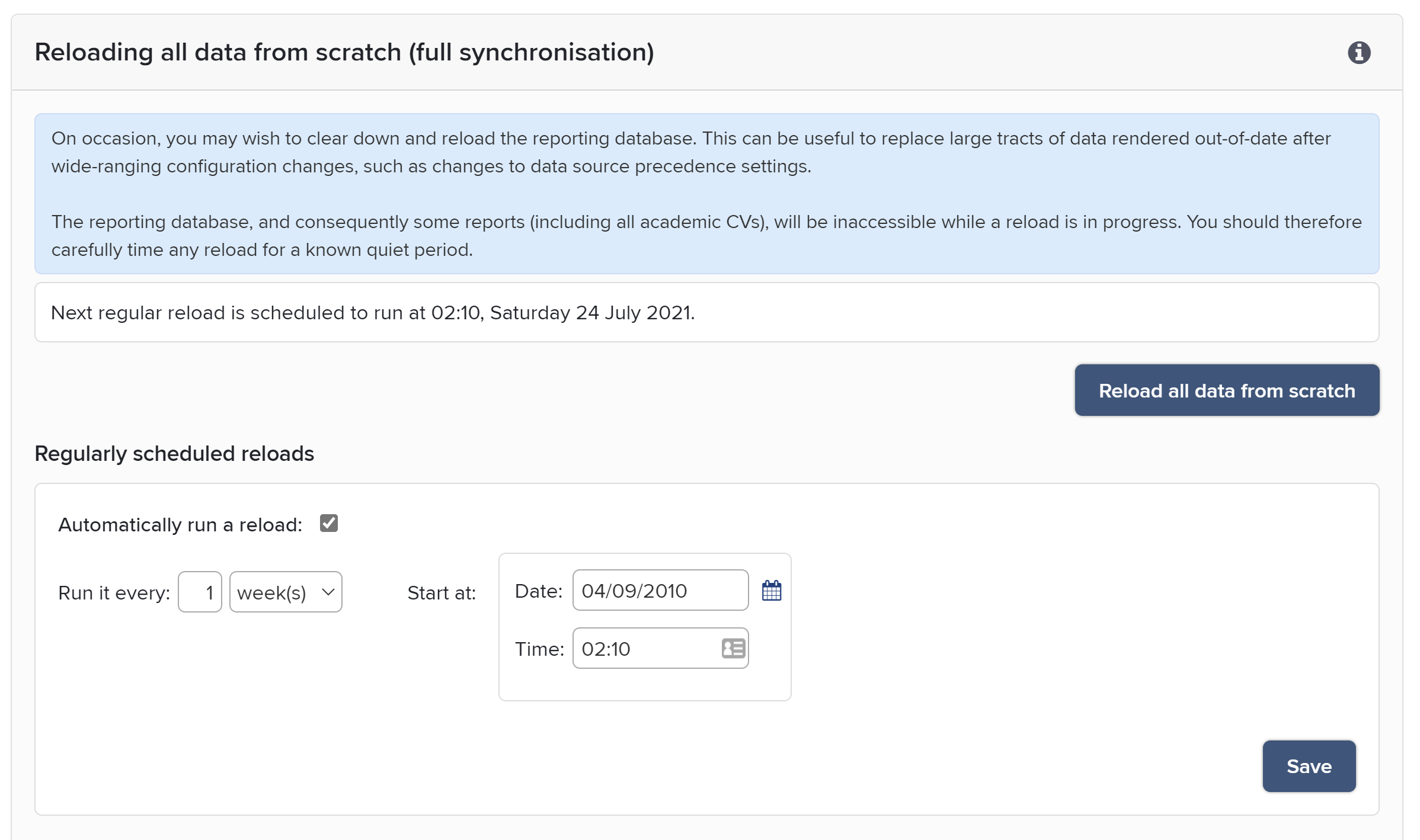

A full data synchronisation will always be performed when the Reporting Synchroniser is started for the first time on an empty Reporting Database. While the Reporting Synchroniser is running, a full data synchronisation can be requested from the Reporting Synchroniser management page. This marks the Reporting Database for full synchronisation, and the Reporting Synchroniser service will begin the full sync as soon as it can.

Full data synchronisation can take a long time, and because it begins by deleting all data, the Reporting Database should not be used while it is running. It is therefore best to schedule a full sync at a time when the Elements system is not under heavy load, and the Reporting Database is not required for use by either Elements itself or by any downstream systems.

At the time the Reporting Database was last (re-)built, Elements created appropriate structure (tables and columns) in the Reporting Database to reflect the data model configured in Elements by your institution at that time. If your institution subsequently modifies the Elements data model (e.g. by adding, editing or removing custom fields or custom data types), the tables and columns of the Reporting Database may no longer align with the new data model.

Until the Reporting Database is rebuilt, the Reporting Synchroniser will continue as best it can to populate the existing structures in the Reporting Database. Where an expected table or column is missing in the Reporting Database, synchronisation will skip that table/column. Where an table/column in the Reporting Database no longer corresponds to a data type/field in Elements, the table/column will be ignored.

To ensure data is properly synchronised for the new data model, your institution should run a special job called structure synchronisation from the Reporting Synchronisation Management page (System Admin > Search & Reporting > Configure Reporting > Reporting Synchronisation).

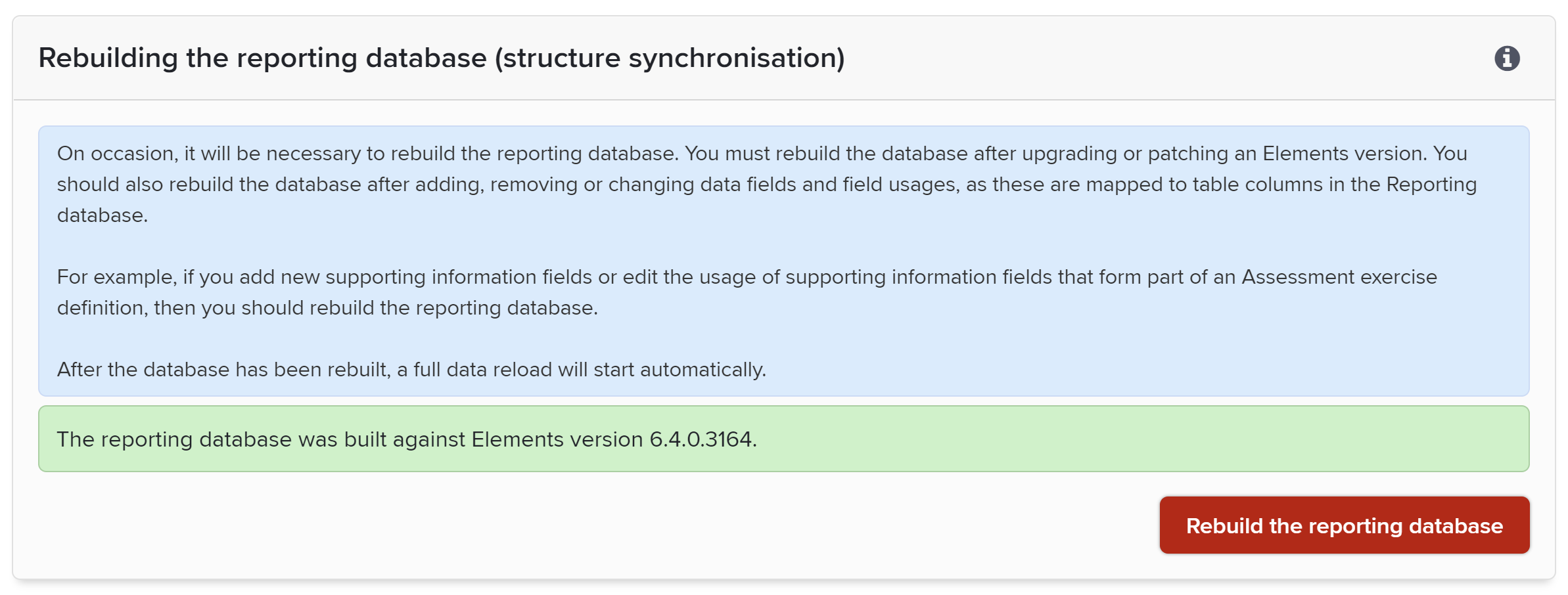

Click the red "Rebuild the reporting database" button to start the process of rebuilding the Reporting Database in line with the current data model. This will cause all tables (and all their data) to be dropped from the Reporting Database and a new set of empty tables to be created. Once that process has completed, the Reporting Synchroniser will automatically start to repopulate all of those tables data using a full data synchronisation. Wait for that to complete.

As well as rebuilding after data model changes, the Reporting Database should be rebuilt in this way immediately after each time Elements is installed, upgraded or patched to reflect any stock changes made to the data model in the new version of Elements.

A structure synchronisation drops all stock tables and recreates them. This will, of course, remove any customisations your institution might have made to stock tables. Please see the following article for advice on maintaining your Reporting Database customisations: Customising the reporting database
